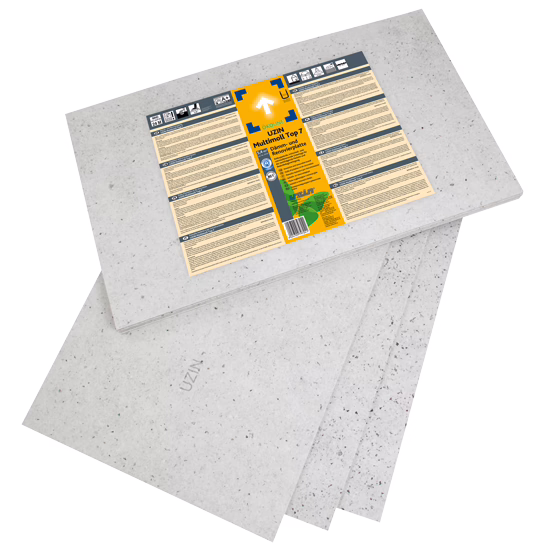

UZIN Multimoll Top 7 Insulation and renovation board

Stress-relieving underlay with impact sound and thermal insulating properties for subsequent installation of wood flooring and floor covering

  • Tension and stress relief - ideal for renovating
  • Absorbs impact sound and insulates heat - increases underfoot and ambient comfort


Main area of application:

  • Stress-relief
  • Fabricating a substrate ready for covering

Extended area of application:

  • Height compensation of existing substrates
  • Impact sound and heat insulation

Suitable for use on:

  • cementitiuos screeds, calcium sulphate screeds or concrete
  • old substrates with strongly bonded compound and adhesive layers
  • new and old, firmly screw-fixed chipboard P4 - P7 or OSB 2 - OSB 4 panels
  • mastic asphalt screeds
  • precast screeds, gypsum fibre boards
  • warm water underfloor heating (upon consultation with UZIN Application Engineering)
  • for high wear in residential, commercial, and industrial areas, e.g. in hospitals, shopping centres


  • Universal use
  • Tension and stress relief
  • Suitable for height compensation
  • Easy to process
  • Impact sound and heat insulating properties
  • Improves underfoot and ambient comfort
  • For interior use


    Technical data

    * According to EN ISO 10140-3:2010, tested with 2-layer pre-finished wood flooring 10 mm, in combination with UZIN MK 250 ** According to DIN EN 12 667 *** According to DIN 4102

    Carton, pallet

    Board size

    0.6 m x 1.0 m = 0.6 m²

    Board thickness

    approx. 7 mm

    Shelf life

    min. 24 months


    Tinged with white

    Area weight

    approx. 4.5 kg/m²

    Traffic load capacity

    approx. 5 kN/m²

    Acoustic insulation improvement*

    approx. 12 dB*

    Thermal resistance (R)**

    0.088 m²K/W

    Thermal conductance (U)**

    11.36 W/m²K

    Building materials class***


    Ordering information

    Item no.
